L Series Relays

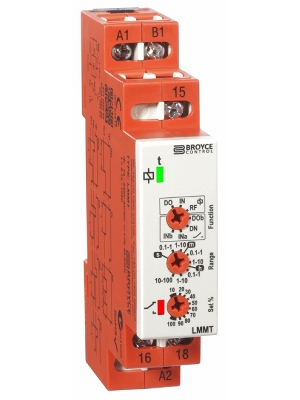

LMMT
Multifunction
Dims: to DIN 43880
W. 17.5mm
7 Selectable functions
7 Selectable time ranges (0.1 seconds一100 hours)
Fine adjustment of selected time range
Multi-voltage input (12一230V AC/DC +/-15%)
LED Warning indication if function is changed whilst powered
1 x SPDT relay output 8A
Green LED indication for supply / timing status
Red LED indication for relay status
Conforms to IEC 61812
LMMT/2
Multifunction
Dims: to DIN 43880
W. 17.5mm
7 Selectable functions
7 Selectable time ranges (0.1 seconds一100 hours)
Fine adjustment of selected time range
Multi-voltage input (12一230V AC/DC +/-15%)
LED Warning indication if function is changed whilst powered
1 x DPDT relay output 8A
Green LED indication for supply / timing status
Red LED indication for relay status
Conforms to IEC 61812

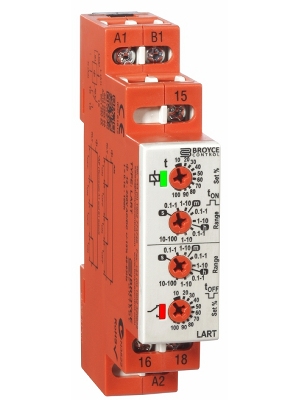

LART
Asymmetrical Recycling
Dims: to DIN 43880
W. 17.5mm
Recycling "On/Off" function AN ("Off / On" AF when external link fitted)
Separate adjustments for "on" and "off" ranges
7 Selectable time ranges (0.1 seconds一100 hours)
Fine adjustment of selected time range
Multi-voltage input (12一230V AC/DC +/-15%)
1 x SPDT relay output 8A
Green LED indication for supply / timing status
Red LED indication for relay status
Conforms to IEC 61812
LART/2
Delayed Pulse
Dims: to DIN 43880
W. 17.5mm
Recycling "On/Off" function AN ("Off / On" AF when external link fitted)
Separate adjustments for "on" and "off" ranges
7 Selectable time ranges (0.1 seconds一100 hours)
Fine adjustment of selected time range
Multi-voltage input (12一230V AC/DC +/-15%)
1 x DPDT relay output 8A
Green LED indication for supply / timing status
Red LED indication for relay status
Conforms to IEC 61812
LEDO
Delay On Operate
Dims: to DIN 43880
W. 17.5mm
Supply initiated, Delay On Operate timing function
7 Selectable time ranges (0.1 seconds一100 hours)
Fine adjustment of selected time range
Multi-voltage input (12一230V AC/DC +/-15%)
1 x SPDT relay output 8A
Green LED indication for supply / timing status
Red LED indication for relay status
Conforms to IEC 61812
LEIN
Internal
Dims: to DIN 43880
W. 17.5mm
Supply initiated, Interval timing function
7 Selectable time ranges (0.1 seconds一100 hours)
Fine adjustment of selected time range
Multi-voltage input (12一230V AC/DC +/-15%)
1 x SPDT relay output 8A
Green LED indication for supply / timing status
Red LED indication for relay status
Conforms to IEC 61812
.jpg)

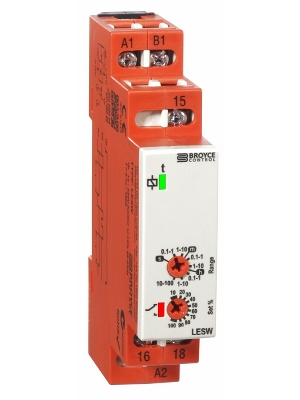

Switch Initiated Delav Off
Dims: to DIN 43880
W. 17.5mm
Switch initiated (Constant supply), Delay Off timing function
7 Selectable time ranges (0.1 seconds一100 hours)
Fine adjustment of selected time range
Multi-voltage input (12一230V AC/DC +/-15%)
1 x SPDT relay output 8A
Green LED indication for supply / timing status
Red LED indication for relay status
Conforms to IEC 61812

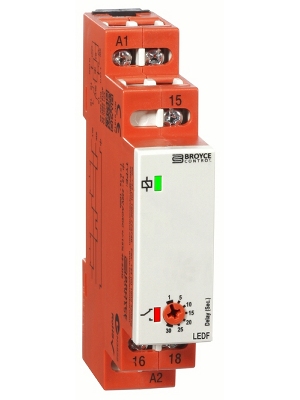

LEDF
Switch Initiated Delay Off
Dims: to DIN 43880
W. 17.5mm
True Delay Off timing function
Adjustment of time delay range
Dual-voltage input (24V AC/DC // 110V AC or 24V AC/DC // 230V AC)
1 x SPDT relay output 8A
Green LED indication for supply status

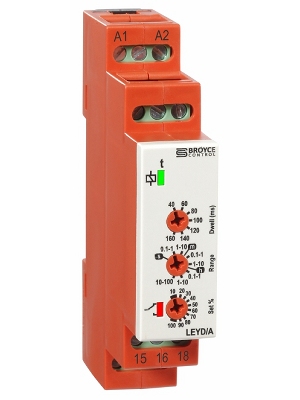

LEYD/A
True Delay Off
Dims: to DIN 43880
W. 17.5mm
Star / Delta Start timing function
7 Selectable time ranges (0.1 seconds一100 hours)
Fine adjustment of selected time range
Selectable "Dwell" time (40·160ms)
Multi-voltage input (12一230V AC/DC +15/-10%)
1 x SPDT relay output 6A
Green LED indication for supply / timing status
Red LED indication for relay status
Conforms to IEC 61812

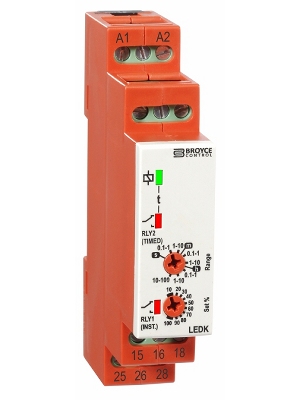

LEDK
Delay On Operate with Instantaneous Contact
Dims: to DIN 43880
W. 17.5mm
Delay On Operate with Instantaneous Contact timing function
7 Selectable time ranges (0.1 seconds一100 hours)
Fine adjustment of selected time range
Multi-voltage input (12一230V AC/DC +15/-10%)
2 x SPDT relay outputs 8A
Green LED indication for supply / timing status
Red LED indication for relay status
Conforms to IEC 61812
LMAT
Multi-Attempt to Start
Dims: to DIN 43880
W. 17.5mm
Multi-Attempt to Start timing function
Separate adjustments for "on" and "off" time ranges
7 Selectable "Start Attempts" (2·8)
Multi-voltage input (12一48V AC/DC +10/-30%)
2 x SPDT relay outputs 8A
Green LED indication for supply / timing status
Red LED indication for relay status
Conforms to IEC 61812
LMCCR-2A
Multifunction, Combined Current Monitoring
Dims: to DIN 43880
W. 17.5mm
True R.M.S. monitoring
3 Selectable monitoring ranges (0.02一0.2, 0.1一1, 0.2·2A AC/DC)
Selectable Under or Over current monitoring
Selectable hysteresis, latch and power up delay options
Adjustable trip level and time delay
Isolated Auxiliary Supply 12一60V OR 24一230V AC/DC +15/-10%
1 x SPDT relay output 8A
Green LED indication for supply status
Red LED indication for relay status and Yellow for alarm

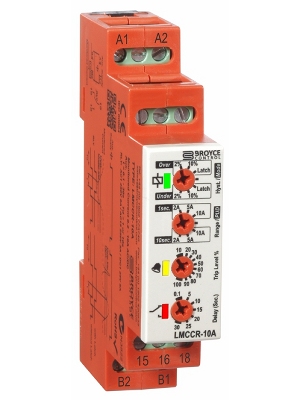

LMCCR-10A
Multifunction, Combined Current Monitoring
Dims: to DIN 43880
W. 17.5mm
True R.M.S. monitoring
3 Selectable monitoring ranges (0.2一2, 0.5一5, 1一10A AC/DC)
Selectable Under or Over current monitoring
Selectable hysteresis, latch and power up delay options
Adjustable trip level and time delay
Isolated Auxiliary Supply 12一60V OR 24一230V AC/DC +15/-10%
1 x SPDT relay output 8A
Green LED indication for supply status
Red LED indication for relay status and Yellow for alarm

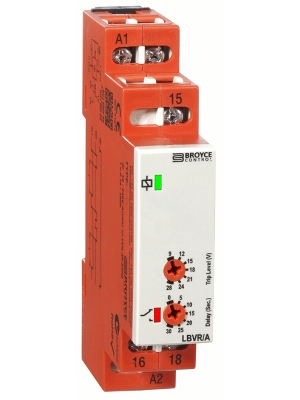

LBVR/A
Battery Voltage Monitoring
Dims: to DIN 43880
W. 17.5mm
DC voltage monitoring
8一30V voltage range
Adjustable trip level
Adjustable time delay
1 x SPDT relay output 8A
Green LED indication for supply status
Red LED indication for relay status
LMCVR-20V
Multifunction, Combined Voltage Monitoring
Dims: to DIN 43880
W. 17.5mm
True R.M.S. monitoring
5 Selectable monitoring ranges (0.1一1, 0.2·2, 0.5·5, 1·10, 2·20V
Selectable Under or Over voltage monitoring
Selectable hysteresis or latch option
Adjustable trip level and time delay
Isolated Auxiliary Supply 12一60V OR 24一230V AC/DC +15/-10%
1 x SPDT relay output 8A
Green LED indication for supply status
Red LED indication for relay status and Yellow for alarm
LMCVR-500V
Multifunction, Combined Voltage Monitoring
Dims: to DIN 43880
W. 17.5mm
True R.M.S. monitoring
5 Selectable monitoring ranges (2一20, 5一50, 10一100, 20一200, 50一500V AC/DC)
Selectable Under or Over voltage monitoring
Selectable hysteresis or latch option
Adjustable trip level and time delay
Isolated Auxiliary Supply 12一60V OR 24一230V AC/DC +15/-10%
1 x SPDT relay output 8A
Green LED indication for supply status
Red LED indication for relay status and Yellow for alarm

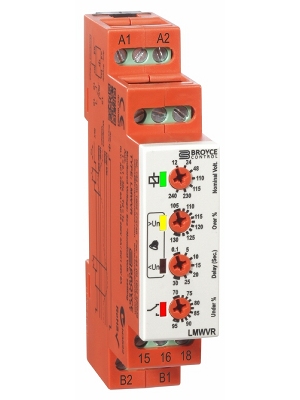

Multifunction, Windowed Voltage Monitoring
Dims: to DIN 43880
W. 17.5mm
True R.M.S. monitoring
7 Selectable Nominal voltage ranges (12一240V AC/DC)
Window operation Under and Over voltage monitoring
Adjustable Under and Over voltage trip levels
Adjustable time delay
Isolated Auxiliary Supply 12一60V OR 24一230V AC/DC +15/-10%
1 x SPDT relay output SA
Green LED indication for supply status
Red LED indication for relay status and Yellow for Under or Over voltage alarm

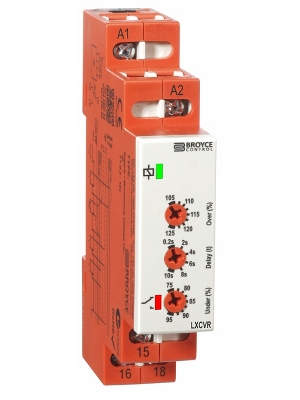

LXCVR
Under and Over Voltage
Dims: to DIN 43880
W. 17.5mm
True R.M.S. monitoring
Monitors own supply
Adjustable Under and Over voltage trip levels
Adjustable time delay
1 x SPDT relay output 8A
Green LED indication for supply status
Red LED indication for relay status

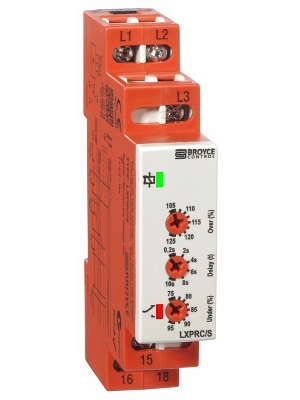

LXPRC/S
Under & Over Voltage, Phase Loss+Sequence
Dims: to DIN 43880
W. 17.5mm
True R.M.S. monitoring
Can be specified for 110, 208, 220, 380, 400 or 415V supplies
Monitors own supply and measures phase to phase voltages
Detects if one or more phases exceed the set Under or Over voltage trip levels
Detects incorrect phase sequence and phase loss
Adjustable Under and Over voltage trip levels
Adjustable time delay to prevent nuisance tripping
1 x SPDT relay output 8A
Green LED indication for supply and Red LED for relay statuses
LXPRC/S-4W
Under & Over Voltage, Phase & Neutral Loss+Sequence
Dims: to DIN 43880
W. 17.5mm
True R.M.S. monitoring
Can be specified for 110, 208, 220, 380, 400 or 415V supplies
Monitors own supply and measures phase to neutral voltages
Detects if one or more phases exceed the set Under or Over voltage trip levels
Detects incorrect phase sequence, phase and neutral loss
Adjustable Under and Over voltage trip levels
Adjustable time delay to prevent nuisance tripping
1 x SPDT relay output 8A
Green LED indication for supply and Red LED for relay statuses

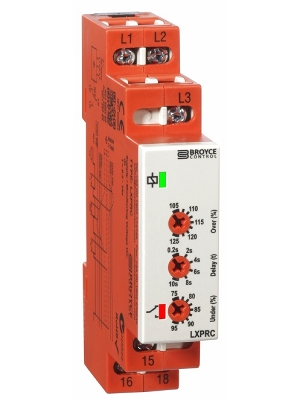

LXPRC
Under & Over Voltage+Phase Loss
Dims: to DIN 43880
W. 17.5mm
True R.M.S. monitoring
Can be specified for 110, 208, 220, 380, 400 or 415V supplies
Monitors own supply and measures phase to phase voltages
Detects if one or more phases exceed the set Under or Over voltage trip levels
Detects phase loss and operates irrespective of phase sequence
Adjustable Under and Over voltage trip levels
Adjustable time delay to prevent nuisance tripping
1 x SPDT relay output 8A
Green LED indication for supply and Red LED for relay statuses
.jpg)
LXPRC-4W
Under & Over Voltage+Phase & Neutral Loss
Dims: to DIN 43880
W. 17.5mm
True R.M.S. monitoring
Can be specified for 110, 208, 220, 380, 400 or 415V supplies
Monitors own supply and measures phase to neutral voltages
Detects if one or more phases exceed the set Under or Over voltage trip levels
Detects phase and neutral loss and operates irrespective of phase sequence
Adjustable Under and Over voltage trip levels
Adjustable time delay to prevent nuisance tripping
1 x SPDT relay output 8A
Green LED indication for supply and Red LED for relay statuses
LXPRT
Under Voltage, Phase Loss+Sequence
Dims: to DIN 43880
W. 17.5mm
True R.M.S. monitoring
Can be specified for 110, 208, 220, 380, 400 or 415V supplies
Monitors own supply and measures phase to phase voltages
Detects an Under voltage condition on one or more phases
Detects incorrect phase sequence and phase loss
Adjustable Under voltage trip level
Adjustable time delay to prevent nuisance tripping
1 x SPDT relay output 8A
Green LED indication for supply status
Red LED indication for relay status

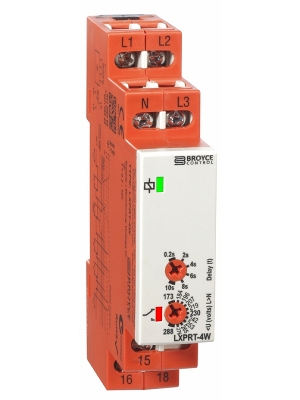

LXPRT-4W
Under Voltage, Phase &Neutral Loss+Sequence
Dims: to DIN 43880
W. 17.5mm
True R.M.S. monitoring
Can be specified for 110, 208, 220, 380,
400 or 415V supplies
Monitors own supply and measures phase to neutral voltages
Detects an Under voltage condition on one or more phases
Detects incorrect phase sequence, phase and neutral loss
Adjustable Under voltage trip level
Adjustable time delay to prevent nuisance tripping
1 x SPDT relay output 8A
Green LED indication for supply status
Red LED indication for relay status

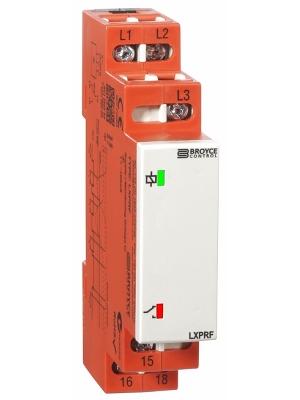

LXPRF
Phase Loss+Sequence
Dims: to DIN 43880
W. 17.5mm
True R.M.S. monitoring
Can be specified for 110, 208, 220, 380,400 or 415V supplies
Monitors own supply and measures phase to phase voltages
Detects an Under voltage condition on one or more phases
Detects incorrect phase sequence and phase loss
Fixed Under voltage trip level
Fixed time delay
1 x SPDT relay output 8A
Green LED indication for supply status

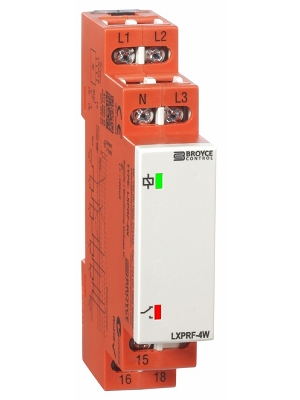

LXPRF-4W.
Phase & Neutral Loss+Sequence
Dims: to DIN 43880
W. 17.5mm
True R.M.S. monitoring
Can be specified for 110, 208, 220, 380, 400 or 415V supplies
Monitors own supply and measures phase to neutral voltages
Detects an Under voltage condition on one or more phases
Detects incorrect phase sequence, phase and neutral loss
Fixed Under voltage trip level
Fixed time delay
1 x SPDT relay output 8A
Green LED indication for supply status
Red LED indication for relay status
